GXP® DREN 20 P
Water reservoir for roofs and terraces
GXP® Dren 20 P is a combination of a perforated bucket membrane with geotextile DuPontTM TYPAR®, which constitutes an ideal drainage layer on extensive green roofs, at the same time serving as a filter, a water accumulating tank and a dehydration layer. A durable joint of the perforated bucket membrane with the thermowelded geotextile ensures high easiness during installation at sites as well as accelerates the works.
Advantages
- Ensures water accumulation for plants (intensive vegetation)
- Very resistant to compression and breakdowns
- High densification of embossings 400 items/m²
- Increased thermal insulation
- Limited heat accumulation
- Optimal dehydration capacity
- Certified material compliant with norm PN – EN 13252
Technical Data
| Technical Data | ||
|---|---|---|
| Weight | 900 g/m2 | 1100 g/m2 |
| Material thickness | 0,9 mm | 1,0 mm |
| Compression strength | 160 kN/m2 | 200 kN/m2 |
| Embossing height | 20 mm | 20 mm |
| Number of embossings | 400 na m2 | 400 na m2 |
| Roll width | 2,0 x 12,5 m | 2,0 x 10 m |
| Temperature resistance | -40 do +80oC | -40 do +80oC |
| Air gap between buckets | 14 l/m2 | 14 l/m2 |
| Drainage capacity (if it’s connected with the geotextile) | 10 l /s /m 600 l /min /m 36000 l /h /m | 10 l /s /m 600 l /min /m 36000 l /h /m |

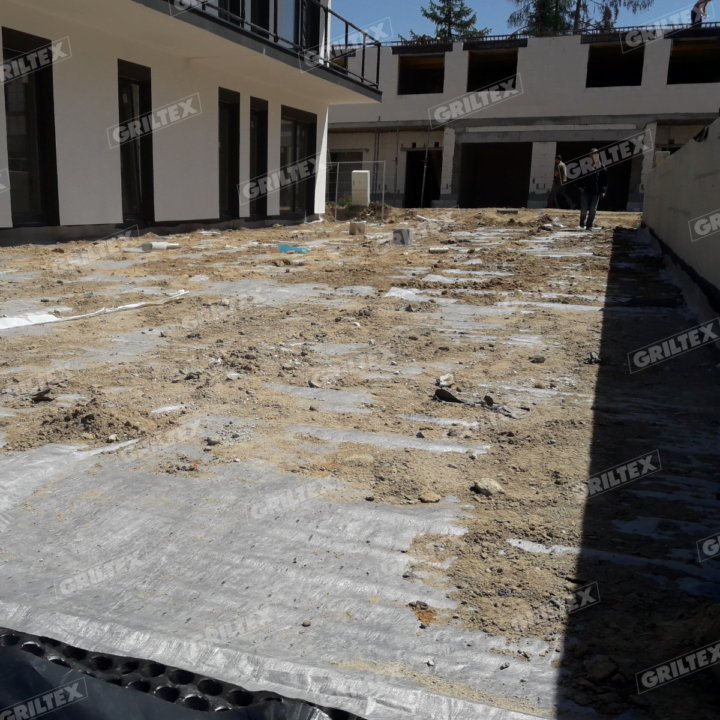

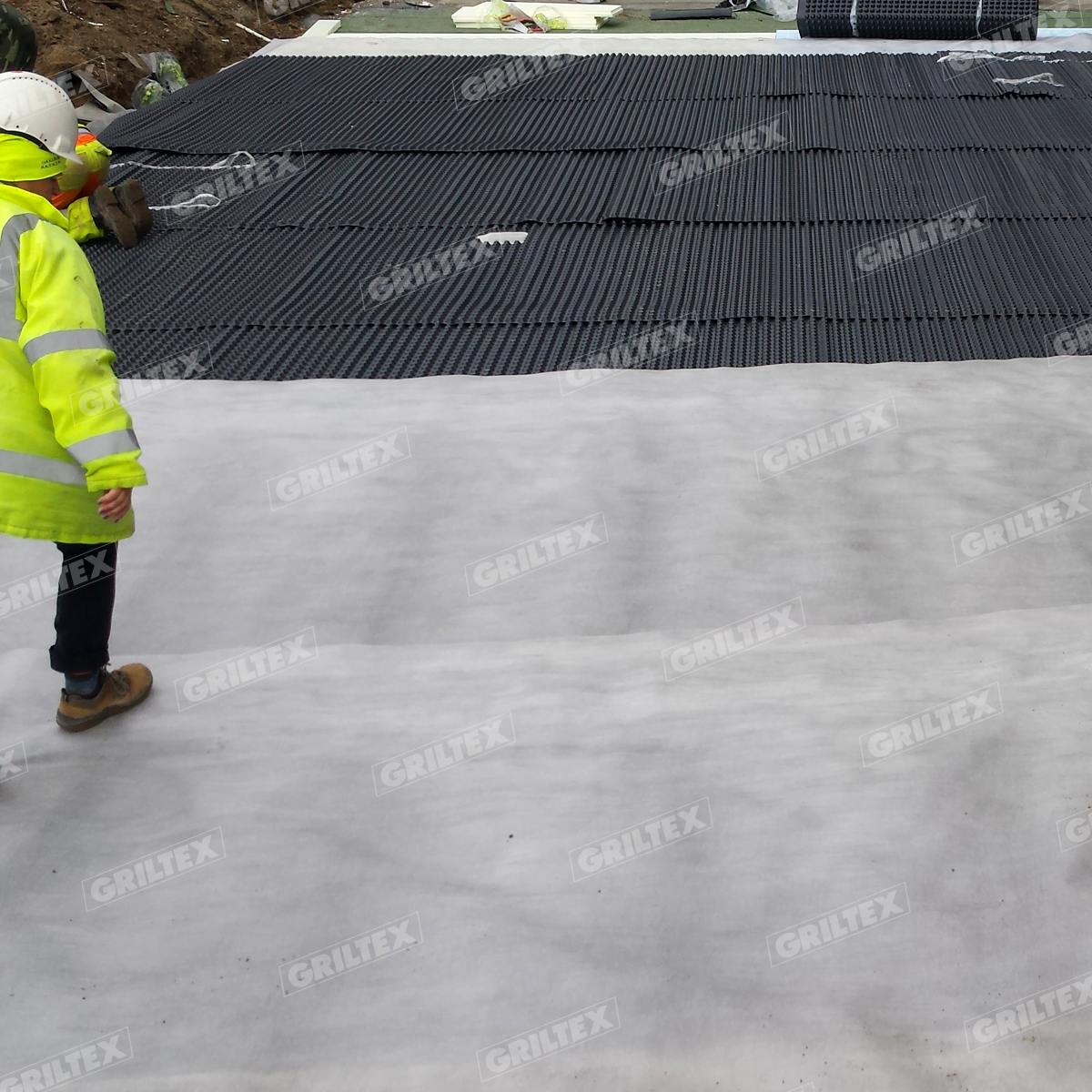

Photos
Housebuilding industry
